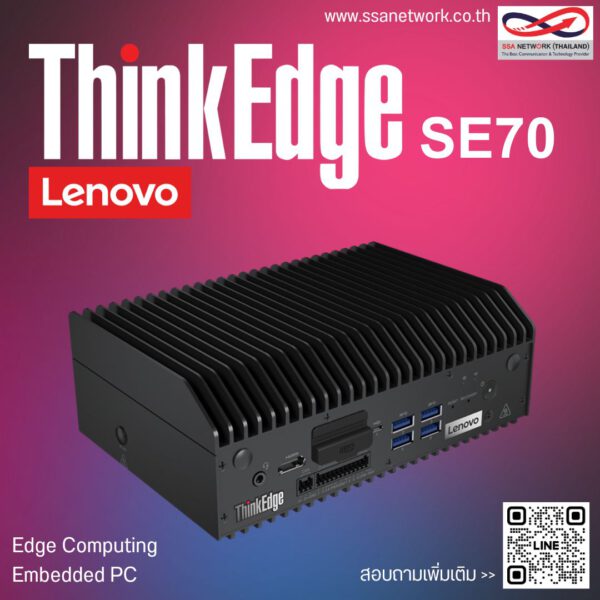

Lenovo ThinkEdge SE70

PERFORMANCE PROCESSOR

• Nvidia Jetson Xavier NX 8GB / 16GB

Memory & STORAGE

• 8GB / 16GB LPDDR4x memory on SOM
• Up to two drives, 16GB eMMC 5.1 on SOM + 1x M.2 SSD

Connectivity

Front I/O

• 4x USB 3.2 Gen 1 (4 ports share 5Gbps bandwidth), 1x USB On-
• The-Go (OTG), USB 2.0 Micro-B, 1x headphone /
• microphone combo jack (3.5mm), 1x microSD card slot, 1x CAN
• BUS, 1x HDMI 1.4, 1x 4-channel DIO (4DI / 4DO)

Rear I/O

• 2x Serial (RS232 / RS422 / RS485, SDK selectable), 2x GbE
• Ethernet (RJ-45), supports POE (802.3af, PSE 15.4W),1x
• Slim Tip power connector, for models with AC adapter only, 1x
• DC-in connector (4 pin Phoenix connector), for
• models with DC-in only

Design

• DIMENSIONS : 191 x 128 x 65 mm (7.52 x 5.04 x 2.56 inches)
• WEIGHT : starting at 1.857 kg (4.09 lbs)
