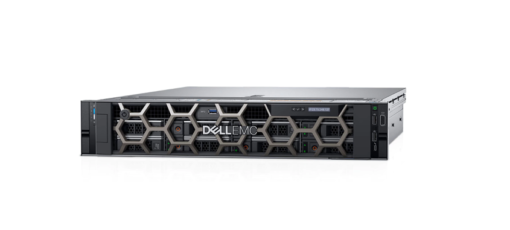

Dell EMC PowerEdge R740 Rack Server

Processor
Up to two Intel® Xeon® Scalable processors, up to 28 cores per processor
Operating System
Canonical® Ubuntu® LTS Citrix® XenServer®
Microsoft Windows Server® with Hyper-V Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server VMware® ESXi
Chassis
Optional LCD or Security bezel
Data Protection
TPM 1.2/2.0 optional Cryptographically signed firmware
Secure Boot
System Lockdown
Secure erase
Dimensions
Form factor : Rack (2U)
Max depth : 715.5 mm
Drive Bays
Front bays : Up to 24 x 2.5” SAS/SSD/NVMe, max 153TB Up to 12 x 3.5” SAS, max 120TB
Mid bay : Up to 4 x 3.5” drives , max 40TB Up to 4 x 2.5” SAS/SSD/NVMe, max 25TB
Rear bays:
Up to 4 x 2.5” max 25TB
Up to 2 x 3.5” max 20TB
Memory*
24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666, 3TB max
Up to 12 NVDIMM, 192 GB Max
Supports registered ECC DDR4 DIMMs only
Ports
Network daughter card options : 4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE
Front ports : VGA, 2 x USB 2.0, dedicated IDRAC Direct Micro-USB
Rear ports : VGA, Serial, 2 x USB 3.0, dedicated iDRAC network port
Video card :  VGA
PCIe : Up to 8 x Gen3 slots, Up to 4 x16
Power
Titanium 750W, Platinum 495W, 750W, 1100W,
1600W, and 2000W
48VDC 1100W, 380HVDC 1100W, 240HVDC 750W
Hot plug power supplies with full redundancy Up to 6 hot plugs fans with full redundancy High performance fans available
